Horizontal Ribbon Mixer Ribbon Blender Double Helix mixer Equipment for food chemical powder Working principles:Horizont
Basic Info.
Model NO. LHY
Certification CE, ISO
Application Area Chemical
Layout Type Horizontal
Mixing Drum Shape Circular Groove
Additional Capabilities Drying, Coating, Cooling and Heating
Operating type Continuous Operating
Condition New
Size Manufacturing by Client′s Requirement
Transport Package Wooden Case or as Required
Specification CE, ISO 9001
Trademark SL
Origin China
Production Capacity TBA
Product Description
Horizontal Ribbon Mixer Ribbon Blender Double Helix mixer Equipment for food chemical powder

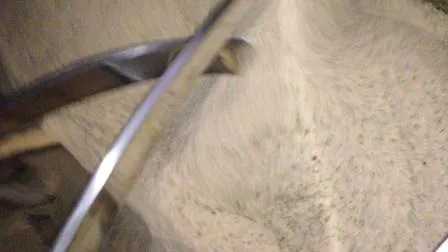

Working principles:Horizontal ribbon mixer is one kind of single shaft mixer of high efficiency, wide application.Horizontal, single shaft with double proportioned ribbon is housed in the tubular mixing drum. The vortex ribbon rotates with main shaft and thus bring raw material move towards direction of vortex ribbon. Outer ribbon push material from two ends to center and inner ribbon push material from center to two ends, and thus convection mixing is achieved.Horizontal paddle mixer is equipped with systematic paddles, with one circle of main shaft rotation; two systematic paddles will push materials to different directions.There is outlet at bottom of mixer, vortex structure of outer ribbon and main shaft rotation push material from two ends to center, so no leftover will be stayed in mixer tank after discharge.
Application:Powder-Powder, Powder-Grain, Powder-Liquid, Grain-Grain etc.

1.Flexible material selection

Material can be carbon steel, manganese steel, ss304, 316L and 321; besides, different

material can also be used in combination. Surface treatment for stainless steel include sandblasting, wiredrawing, polishing, mirror polishing, all can be used in different parts of a mixer

2.The driven unit

Options for motor: general motors, explosion-proof motors, variable frequency motor, high efficiency and energy saving motor. Commonly used reducers: R-series, K-series, and F-series gear box; cycloidal reducer, universal gear reducer, planetary gear reducer.

Commonly motor-gearbox connection: direct connection, pulley connection, hydraulic coupler connection.


3.High efficiency mixing unitDifferent main shaft agitators can be equipped according to the properties of raw materials.The main shaft agitator could be: inner and outer ribbon, paddle and ribbon, disconnected ribbon, and shaver-shaped agitator.

4.Excellent discharging unit

The drive types of valve are Manual, pneumatic, and electric.Valves for consideration: powder spherical valve, cylinder valve, plum-blossom dislocation valve, butterfly valve, rotary valve etc.

5.Various inlets Various inlets on the top cover of the barrel can be designed according to different situations.They can be used as man hole, cleaning door, feeding hole, vent, and dust colleting hole.

The top cover can be designed as fully-opened lid for easy cleaning.

6.Powerful auxiliary components
Mixer is frequently equipped with many auxiliary components, like steam coil jacket, honeycomb pressure jacket, medium circulation jacket

sampling valve, high speed chopper, temperature sensor, weighing system, dust removal system and so on.
Different heat medium requires different jacket, it can be used for heating and cooling, while, the temperature should be within 250 Celsius degree.

Model PowerSpeed working capacity/ Batch Dimension mixer weight
(kw) (rpm) (kg) (mm) (kg)
LHY-0.1 3 41 40-60 1190×740×770 330
LHY-0.3 4 41 120-180 2300×680×1060 550
LHY-0.5 5.5 41 200-300 2900×780×1240 900
LHY-1 11 33 400-600 3200×1000×1400 1600
LHY-2 15 33 800-1200 3860×1200×1650 2700
LHY-3 18.5 33 1200-1800 4320×1300×1900 3600
LHY-4 22 27 1600-2400 4600×1400×2000 4200
LHY-5 30 27 2000-3000 4850×1500×2020 5100
LHY-6 37 27 2400-3600 5400×1560×2200 5600
LHY-8 45 22 3200-4800 5100×1720×2420 6500
LHY-10 45 22 4000-6000 5610×1750×2360 7800
LHY-15 55 14 6000-9000 5820×2000×2900 11000
LHY-20 75 14 8000-12000 6060×2630×3160 13000
Not all products are listed . For more , please contact with the sales engineering.


The production blending line is like:

Feeding machine: manual feeding, crane big bag feeding, screw conveyor feeding, vacuum feeding, bucket elevator etc.

Mixing machine: doubel ribbon blender, single shaft mixer, mixing machine etc.

Filling machine: storage silo, screw conveyor, packing machine, big bag etc.

Simple system as dry ingredient bulk production mixing line like:
